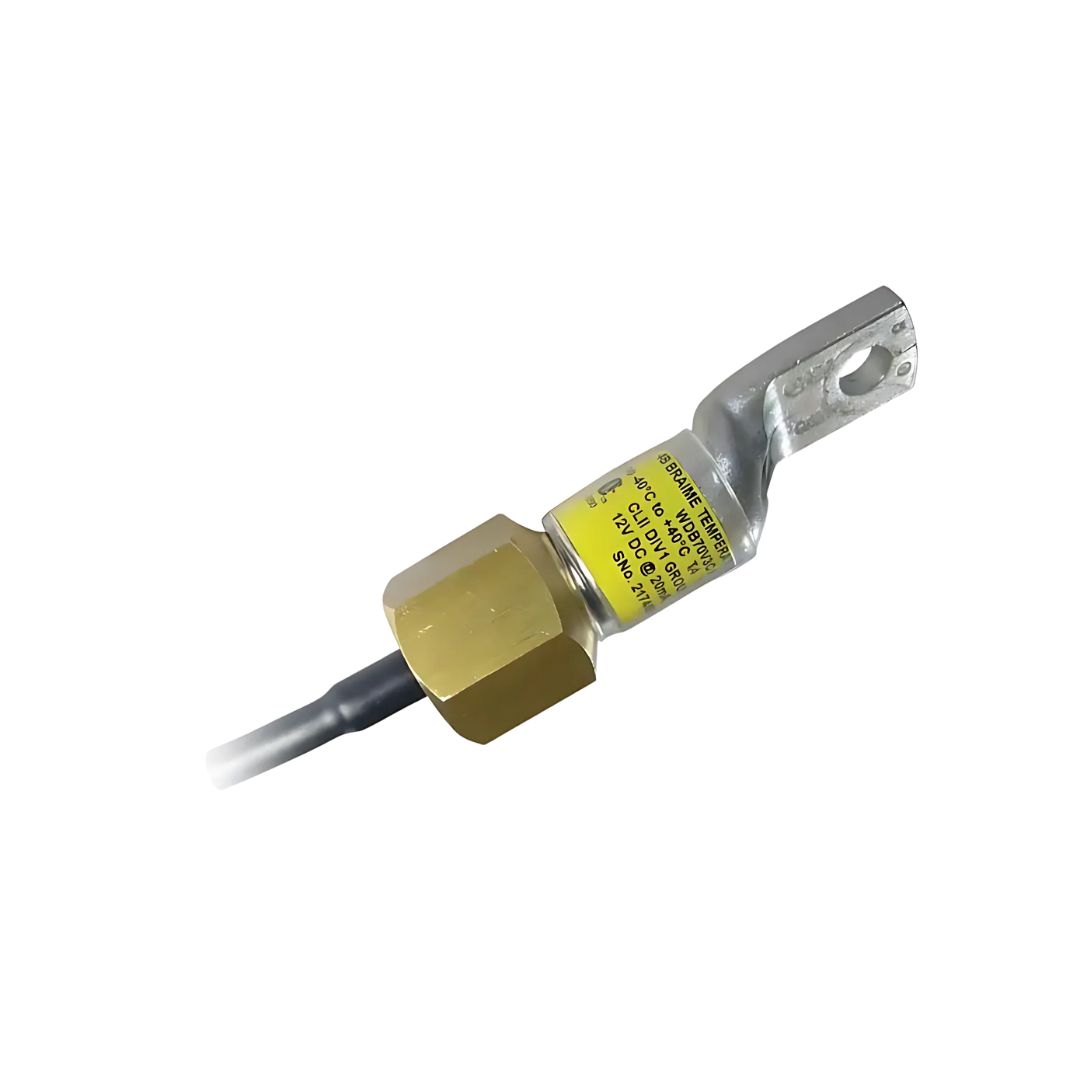

The WDB7 series is a lug style NTC thermistor or platinum RTD (PT100) type for continuous temperature monitoring. It is designed to bolt directly onto a bearing housing, motor, gearbox, or machine casing. The mounting hole is M8 which can be drilled out up to M10 diameter. The sensor can be connected to a PLC or to a hazard monitoring system, such as 4B’s T500 Hotbus Elite, Watchdog Super Elite, or T400 Elite. The connections are not polarity sensitive therefore special connections requirements are eliminated. The WDB7 series is approved for use in ATEX and IECEx Zone 20 dust hazard locations.
