Description

FEATURES AND BENEFITS

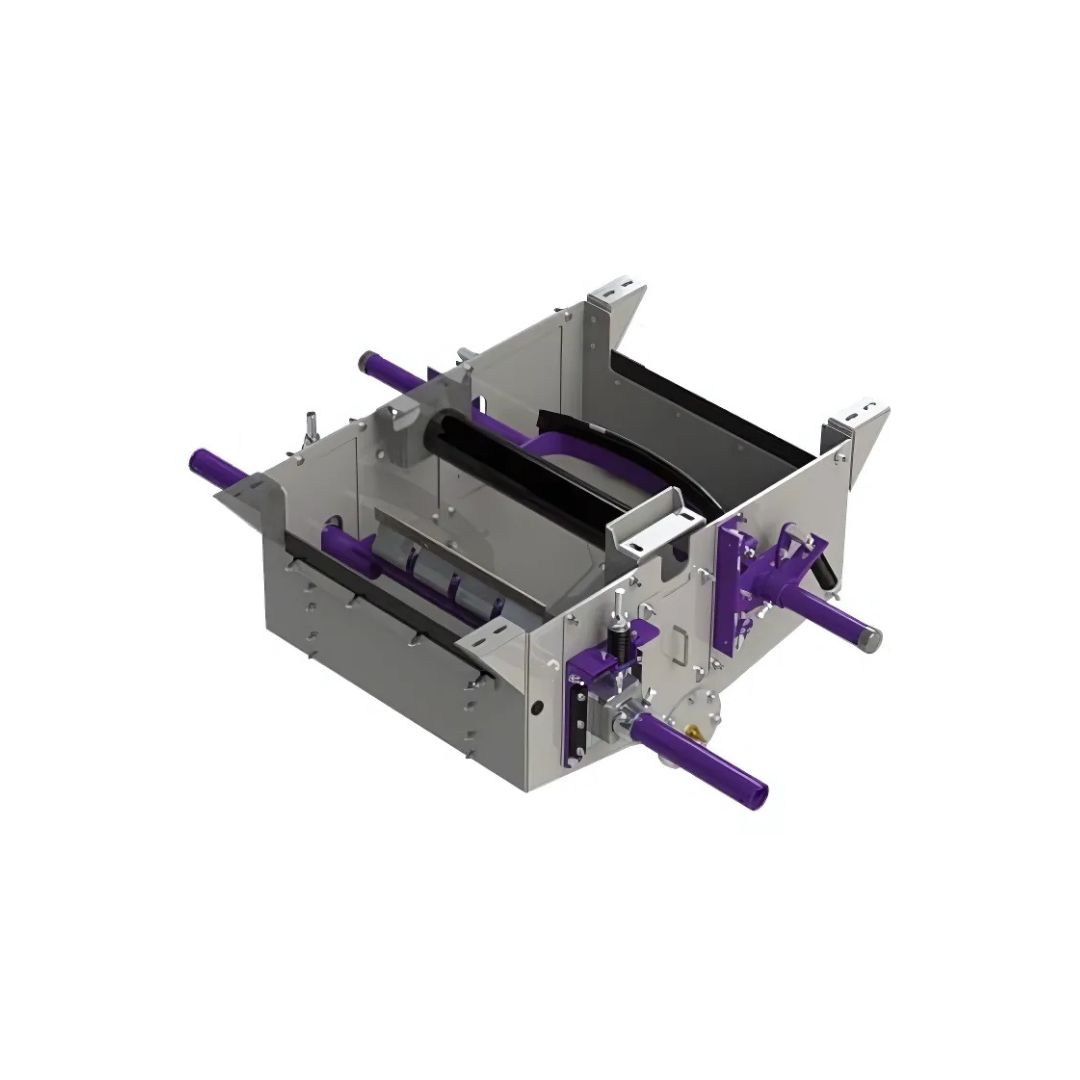

• Fully enclosed to clean belt and then contain the waste wash water
• Washdown sprays flush material off the bottom pan and out the drain portal
• Custom mounting plates to match cleaner selection for optimal sealing
• Hinged doors located on each side for easy service and inspection
• Mounts to existing stringers – Drill and bolt fitment minimizes installation and downtime
• Included hold down roller provides the proper tension for each cleaner
• Wet or Dry Cleaning – Add return side spray bars for an enhanced cleaning system
• Customizable – Wash boxes can be custom engineered to fit the job requirements if standard offering does not suit your application

SPECIFICATIONS

• Galvanized Steel or 304 Stainless Steel
• Belt widths 24″ to 96″ (600 mm to 2400 mm)
• Maximum Belt Speed 1500 fpm (7.6 m/s)
• Temperature Rating 30°F to 180°F (-35°C to 82°C)
• Drain Options
  • Rear Drain (suitable for most applications)
  • Center Drain (suitable for conveyors level to ground)
