Description

FEATURES & BENEFITS

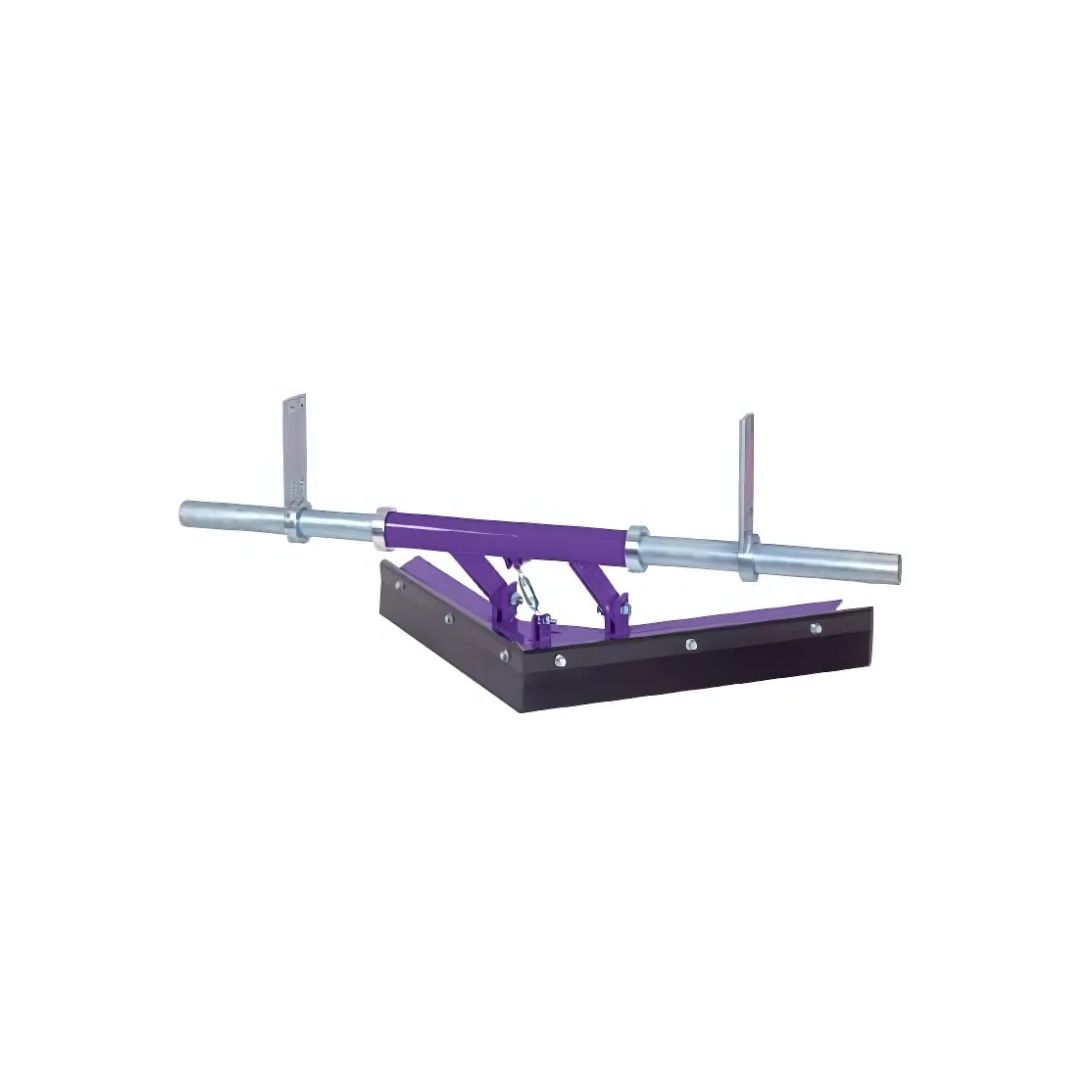

• Simultaneously discharges debris to both sides of belt
• Self-adjusting blade – the blade floats on the belt and self-adjusts as it wears
• Unique blade adjuster – turnbuckle-type adjuster allows the blade to be accurately positioned to the belt
• Easy to install – comes fully assembled and can be placed right into position on the conveyor
• Simple and quick replacement for new blades
• Compatible with mechanical fasteners

SPECIFICATIONS

• Maximum Belt Speed: 1000 FPM (5 M/sec)
• Temperature Rating: -40°F to 160° F (-40° C to 71° C)
• Blade Material: UHMWPE 67-D durometer
• Belt Direction: One Way
• Grease and Chemical Resistance: Excellent
• Sticky Material Performance: Excellent
• Belt Widths: 18″ to 96″ (450 to 2400 mm)

INSTALLATION

• Universal mounting hardware that fits virtually any conveyor structure
