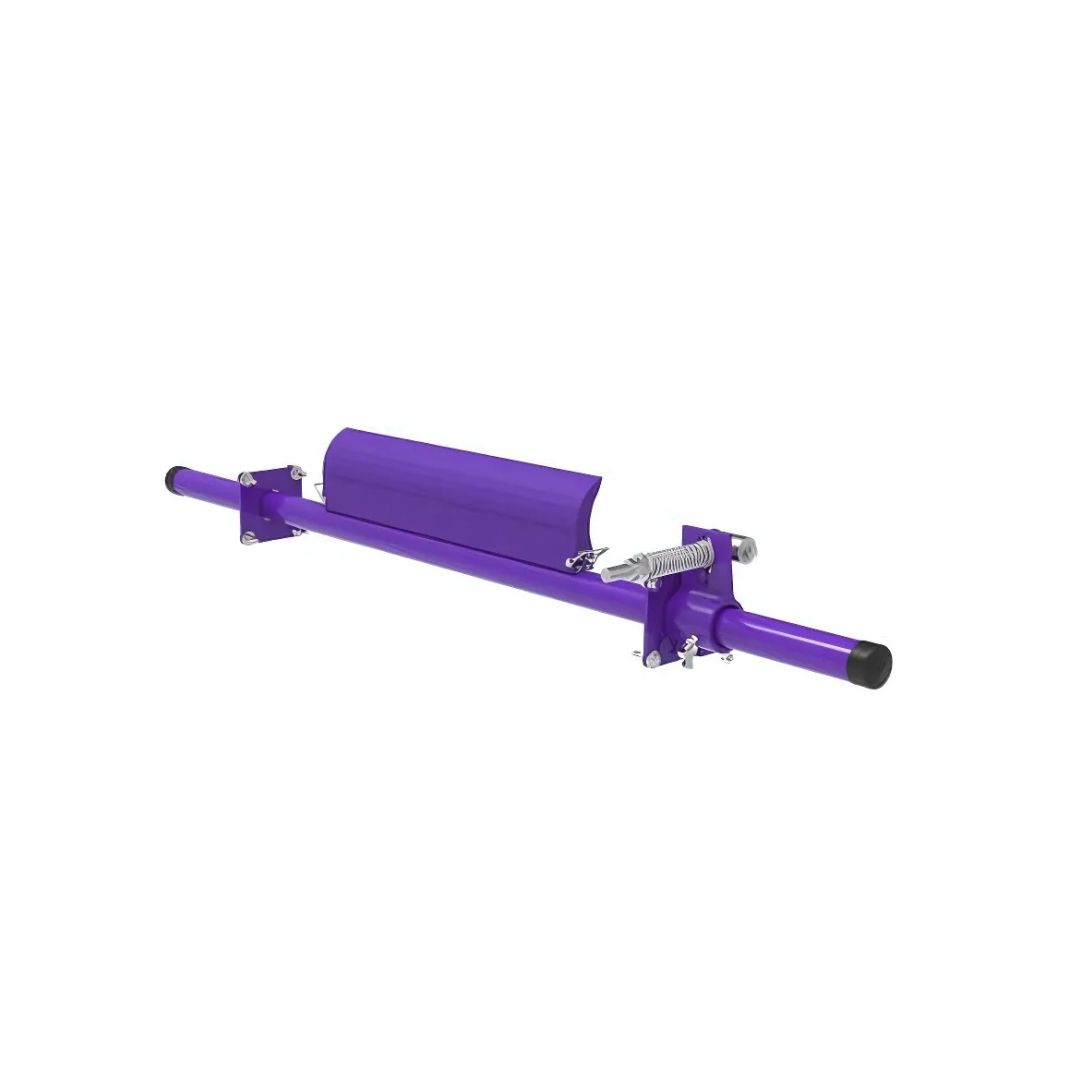

Description

SPECIFICATIONS

• Maximum Belt Speed: 700 fpm (3.5 m/sec)
• Temperature Rating: -30°F to 180°F (-35°C to 82°C)
• Minimum Pulley Diameter: 16″ (400 mm)
• ConShear blade sizes available:
  • Belt Width Minus 2″ (50 mm)
  • Belt Width Minus 8″ (200 mm)
• Cleaner can also be retrofitted with Belt Width Minus 14” (350 mm) replacement blades
• Blade Height: 7-1/4″ (185 mm)
• Usable Blade Wear Length: 4″ (100 mm)
• Blade Material: Polyurethane (proprietary blend for abrasion resistance and long wear)
• Pole Diameter: 2-7/8″ (73 mm)
• Belt Widths: 24″ to 84″ (600 to 2100 mm)

INSTALLATION

• Pole Length: Belt width plus 54″ (1350 mm). For longer requirements, see Pole Extenders under Belt Cleaner Accessories.
• Horizontal clearance required: 4″ (100 mm)
• Vertical clearance required: 10″ (250 mm)
