Description

SPECIFICATIONS

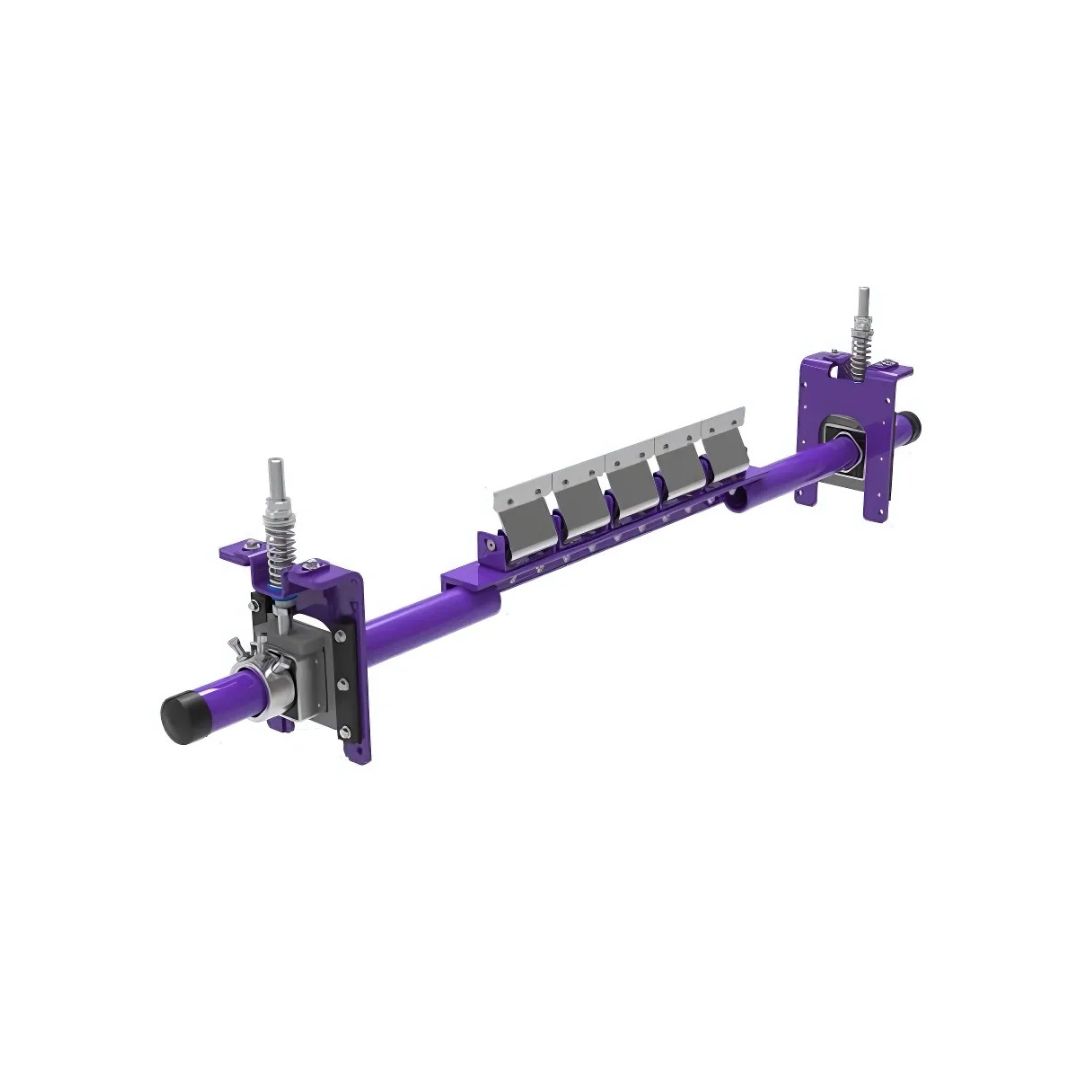

• SST Spring Tensioner
• Maximum Belt Speed:
  • C-Tip: 1200 fpm (6.0 m/sec)
  • V-Tip: 1500 fpm (7.5 m/sec)
• Temperature Rating: -30°F to 180°F (-35°C to 82°C)
• Usable Blade Wear Length: 3/8″ (9 mm)
• Blade Materials:
  • C-Tip: Impact Resistant Tungsten Carbide (works with mechanical fasteners)
  • V-Tip: Long Life Tungsten Carbide (for vulcanized belts only)
• Pole Diameter: 2-7/8″ (73 mm)
• Available for Belt Widths: 18″ to 96″ (450 to 2400 mm)

INSTALLATION

• Pole Length: Belt width plus 54″ (1350 mm). For longer requirements, see Pole Extenders under Belt Cleaner Accessories category.
• Horizontal clearance required: 4″ (100 mm)
• Vertical clearance required: 10″ (245 mm)
• To make cleaner installation easier and quicker, see Optional Mounting Kits under Belt Cleaner Accessories category.
