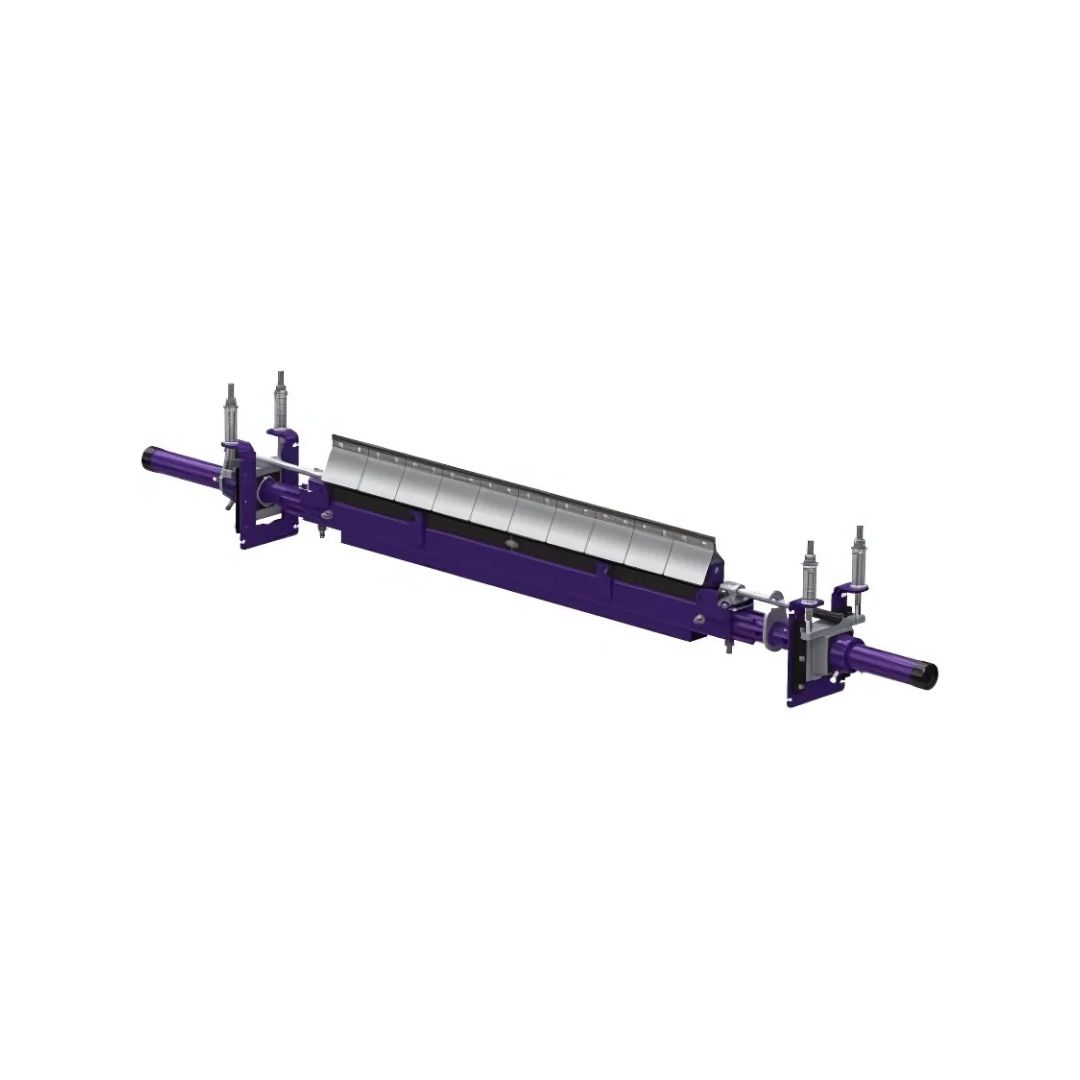

Description

SPECIFICATIONS

• Dual spring tensioner allows clearance to remove cartridge
• Maximum Belt Speed:
  • C-Tip: 1000 fpm (5.0 m/sec)
  • V-Tip: 1200 fpm (6.0 m/sec)
• Temperature Rating: -30°F to 180°F (-35°C to 82°C)
• Usable Blade Wear Length: 3/8″ (9 mm)
• Blade Materials:
  • C-Tip: Impact Resistant Tungsten Carbide (works with mechanical fasteners)
  • V-Tip: Long Life Tungsten Carbide (for vulcanized belts only)
• Pole Diameter: 2-7/8″ (73 mm)
• Available for Belt Widths: 24″ to 120″ (600 to 3000 mm)

INSTALLATION

• Pole Length:
  • Belt width plus 54″ (1350 mm) (single cartridge cleaners)
  • Belt width plus 60” (1500 mm) (dual cartridge cleaners)
• Horizontal clearance required:
  • 4-1/2″ (114 mm) (single and dual cartridge cleaners)
• Vertical clearance required:
  • 11″ (279 mm) (single cartridge cleaners)
  • 10″ (318 mm) (dual cartridge cleaners)
• Tensioner mounting brackets included for fast and easy installation
• Cartridge Removal Kit included for easy removal of the cartridge
