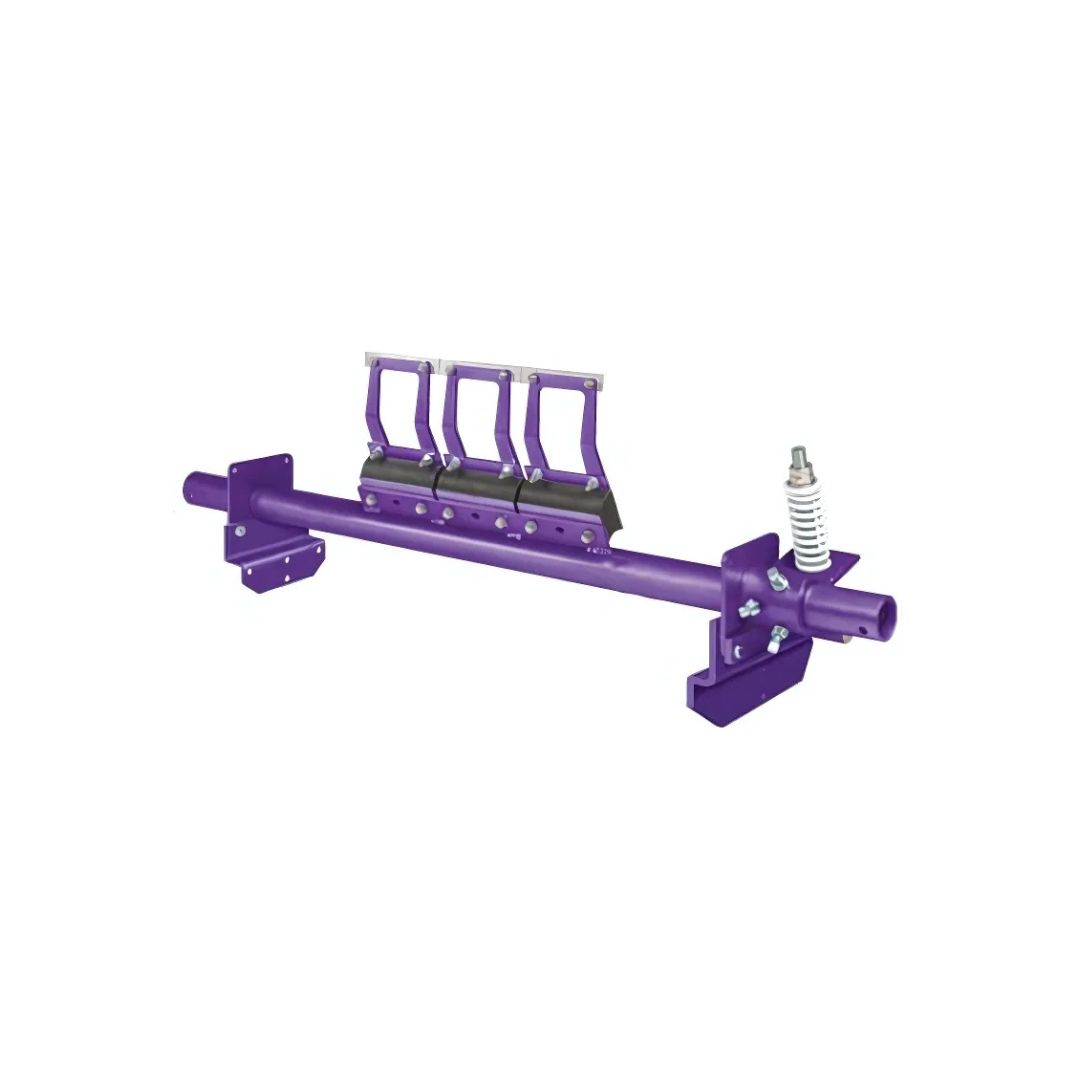

H-Type® with V-Tips

H-Type® with V-Tips

The original H-Type^® with V-Tips has been a proven as an efficient precleaner for over 20 years in material handling applications such as coal, iron ore, bauxite, and hard rock mining with vulcanized belts. The Flexco Mineline^® endorsement means it’s proven in heavy-tonnage applications that test the strength and durability of your conveyor system.

Prices may differ. Contact our Customer Service for details!

Categories: Belt Cleaning Systems, H-Type® Segmented Blade Precleaner, Precleaner Brand: Flexco

Description
Reviews (0)

Description

SPECIFICATIONS

Maximum Belt Speed: 1000 fpm (5 m/sec)
Temperature Rating: -30°F to 180°F (-35°C to 82°C)
Usable Blade Wear Length: 3/8″ (9 mm)
Blade Material: Long Life Tungsten Carbide (for vulcanized belts only)
Pole Diameter: 2-7/8″ (73 mm)
Belt Widths: 18″ to 72″ (450 to 1800 mm)

INSTALLATION

Pole length: Cleaner size + 48″ (1200 mm)
Horizontal clearance required: 7″ (175 mm)
Vertical clearance required: Determined by suspension arm size.
