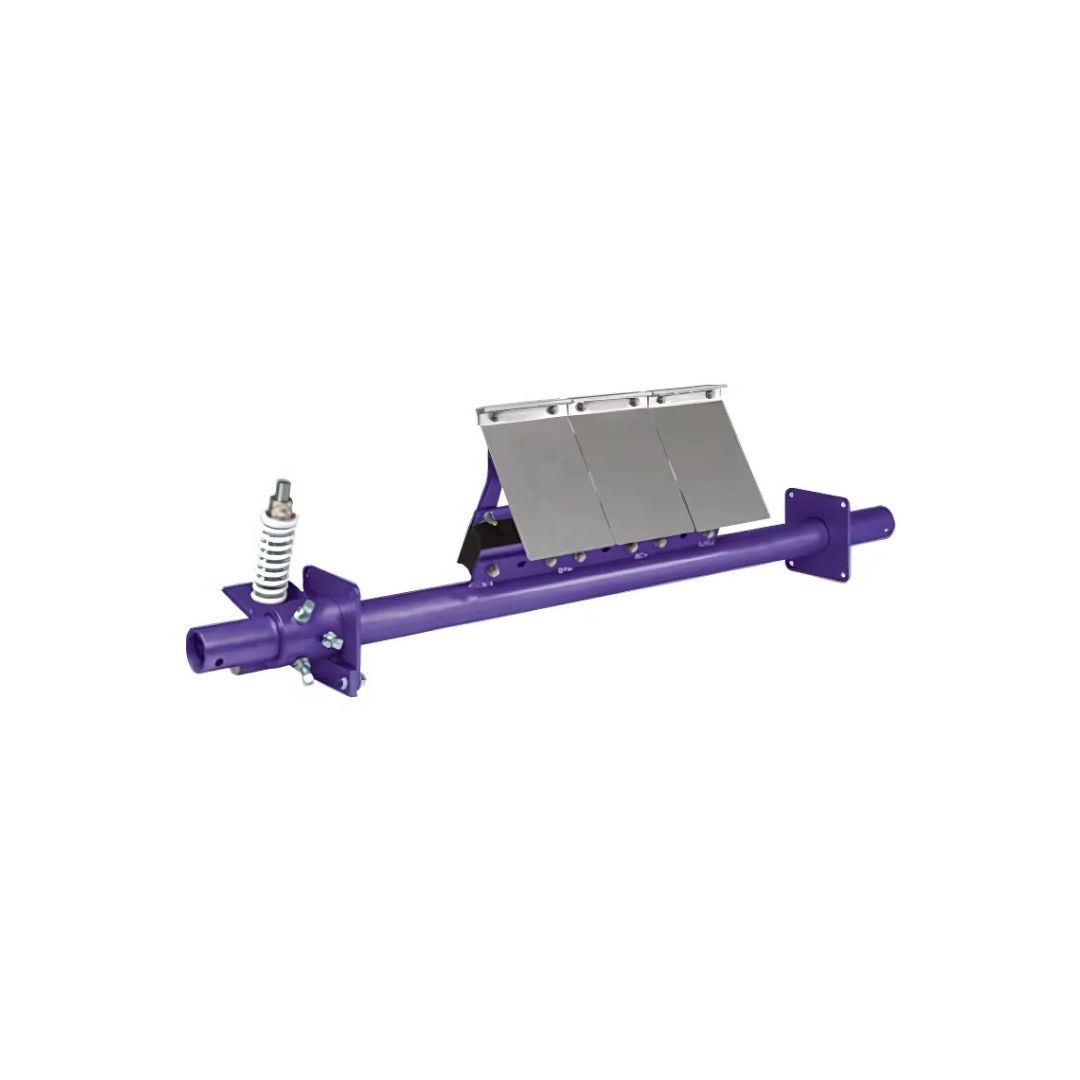

    H-Type® with Protected V-Tips

    H-Type® with Protected V-Tips

    The original H-Type® with Protected V-Tips has been proven as an efficient precleaner for over 20 years in material handling applications such as coal, iron ore, bauxite, and hard rock mining with vulcanized belts. The Protected V-Tips offer long-lasting blade life in abrasive applications. The Flexco Mineline® endorsement means it’s proven in heavy-tonnage applications that test the strength and durability of your conveyor system.

    Prices may differ. Contact our Customer Service for details!

    , , , Brand:

    Description

    SPECIFICATIONS

    • Maximum Belt Speed: 1000 fpm (5 m/sec)
    • Temperature Rating: -30°F to 180°F (-35°C to 82°C)
    • Usable Blade Wear Length: 3/8″ (9 mm)
    • Blade Material: Long Life Tungsten Carbide (for vulcanized belts only)
    • Pole Diameter: 2-7/8″ (73 mm)
    • Belt Widths: 18″ to 72″ (450 to 1800mm)

    INSTALLATION

    • Pole length: Cleaner size + 48″ (1200 mm)
    • Horizontal clearance required: 7″ (175 mm)
    • Vertical clearance required: Determined by suspension arm size.
