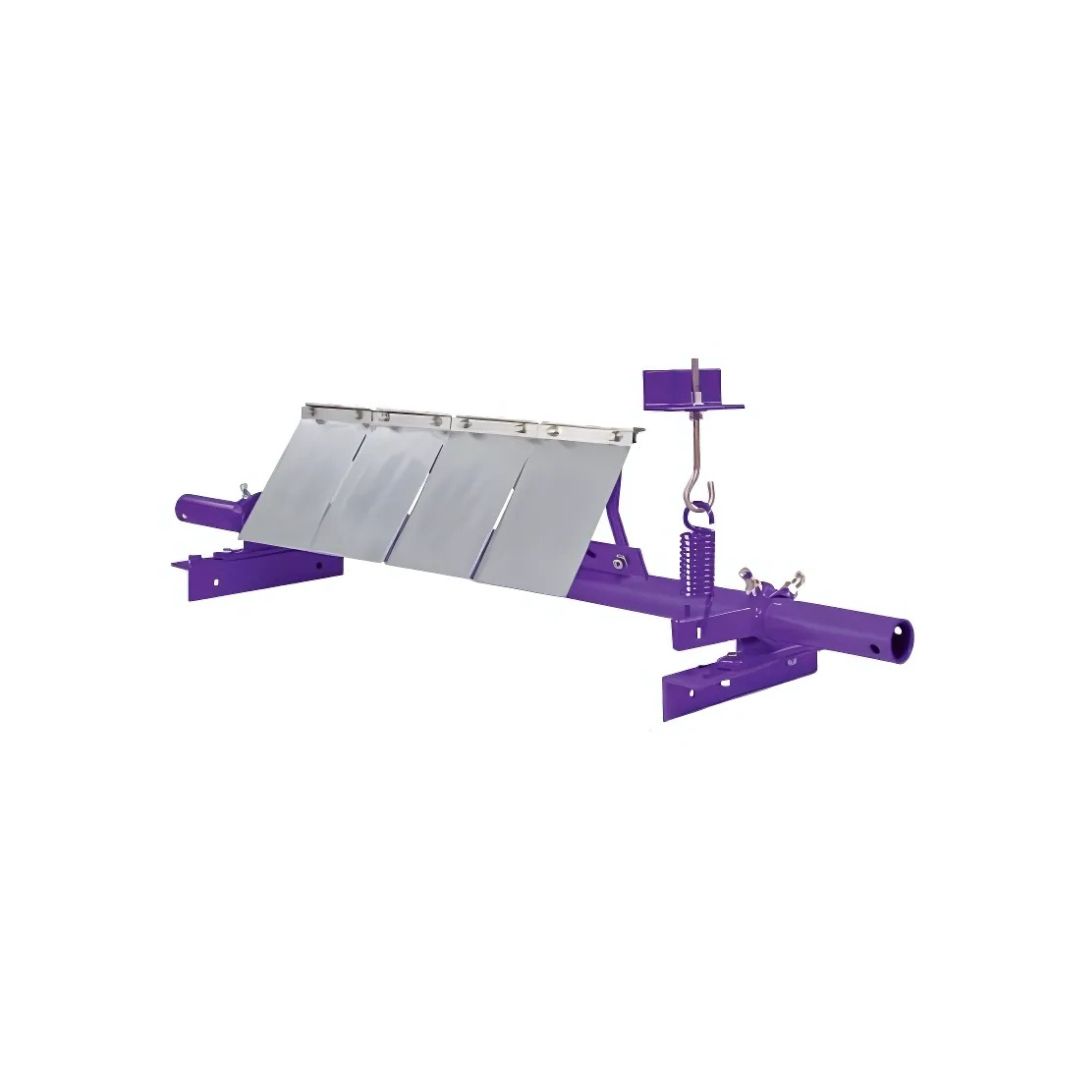

H-Type® High-Temp with V-Tips

H-Type® High-Temp with V-Tips

The H-Type^® High-Temp with V-Tips has the ability to withstand ambient temperatures up to 400° F (204° C) and spikes up to 450° F (232° C). It features stainless steel tip shields for ultimate blade protection.

Prices may differ. Contact our Customer Service for details!

Categories: Belt Cleaning Systems, H-Type® Segmented Blade Precleaner, Precleaner Brand: Flexco

Description
Reviews (0)

Description

SPECIFICATIONS

Maximum Belt Speed: 1000 fpm (5 m/sec)
Temperature Rating: Up to 400°F (204°C) with spikes to 450°F (232°C)
Usable Blade Wear Length: 3/8″ (9 mm)
Blade Material: Long Life Tungsten Carbide (for vulcanized belts only)
Pole Diameter: 2-3/8″ (60 mm)
Belt Widths: 18″ to 72″ (450 to 1800mm)

INSTALLATION

Pole length: Cleaner size + 48″ (1200 mm)
Horizontal clearance required: 7″ (175mm)
Vertical clearance required: Determined by suspension arm size.
