Description

FEATURES AND BENEFITS

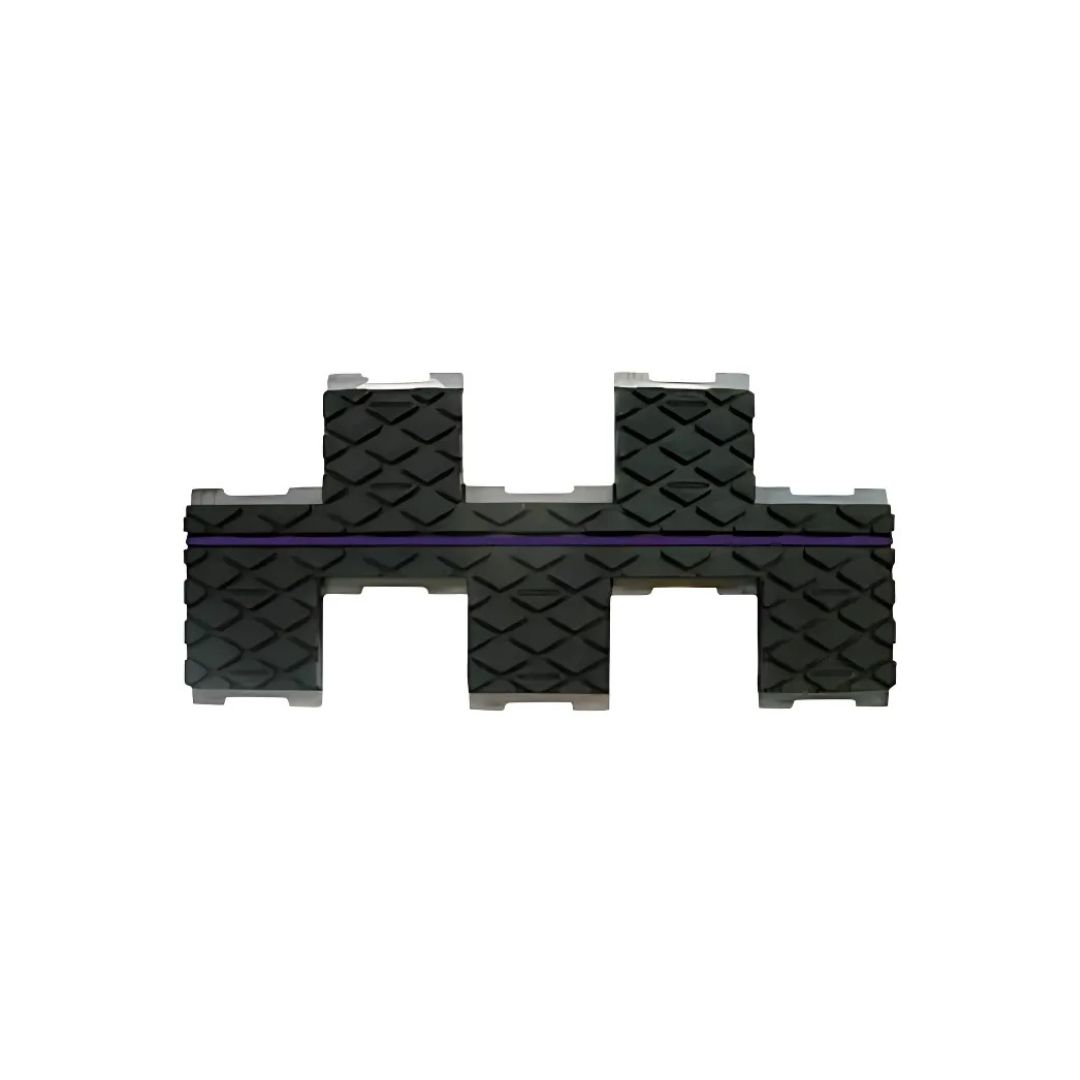

• Diamond pattern is based on rain tire tread designs for superior water-shedding characteristics
• Performs well in both dry and wet applications
• Lagging strips are designed to CEMA pulley width standards to eliminate waste and reduce installation time by up to 50% over similar weld-on lagging products
• Available in SBR rubber and FRAS-approved rubber

SPECIFICATIONS

• Minimum Pulley Diameter: 16″ (400 mm)
• Thickness: 5/8″ (15 mm)
• Temperature Rating: 5° F to 185° F (-15° C to 85° C)
• Rubber Compound: SBR (Styrene-Butadiene-Rubber)
• Rubber Hardness: 68 ± 3 Shore A
• FRAS (Fire Resistant Anti Static) – MHSA Certification # MSHA NO. IC-190
• Ceramic Compound: Aluminum Oxide (Al203)
• Ceramic Hardness: 83 HRA Rockwell Hardness Scale A
• Strip widths from 20″ to 101″ (500 mm – 2560 mm) to match pulley face widths
• Also works with pulley diameters ranging from 16″ to 72″ (400 – 1800 mm) to match belt widths

INSTALLATION

• Use the Flexco Lagging calculator to determine the appropriate number of strips required for your application
• Flex-Lag does not require removing the pulley from the conveyor system
