Description

FEATURES AND BENEFITS

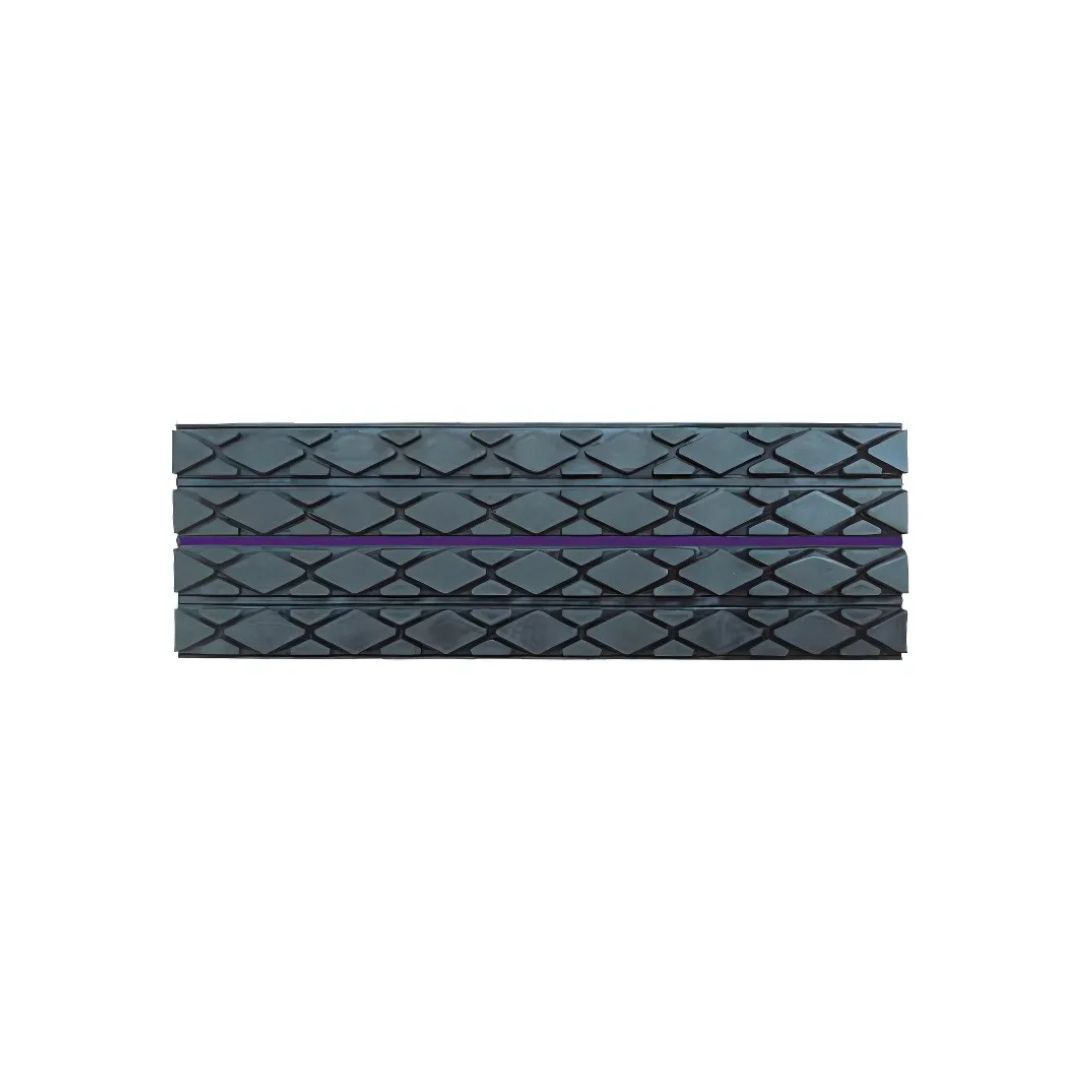

• Diamond pattern features a bidirectional design for superior water-shedding characteristics
• Horizontal grooves provide a second method to disperse water and debris off the lagging and prevent hydroplaning
• Performs well in both dry and wet applications
• Available with FAAS approved rubber, marked in blue for easy identification on site
• Drainage grooves strategically placed at intervals of pi (3.14″) for easier trimming/installation

SPECIFICATIONS

• Minimum Pulley Diameter: 12″ (300 mm)
• Thickness: 3/8″–1″ (10–25 mm)
• Temperature Rating: 5° F to 185° F (-15° C to 85° C)
• Rubber Compound: SBR (Styrene-Butadiene-Rubber)
• Rubber Hardness: 68 ± 3 Shore A
• FRAS (Fire Resistant Anti Static) – MHSA Certification # MSHA NO. IC-190
• Roll Width: 9.41″ (239 mm)
• Roll Length: 23.6 ft. (7.2 m)

INSTALLATION

• Reference Strip Selection in the sell sheet to determine the appropriate number of strips/rolls required for your application
• Flex-Lag does not require removing the pulley from the conveyor system
• A labor-saving cold vulcanization process with Flex-Lag Adhesive makes on-site installation fast, simple, and efficient
