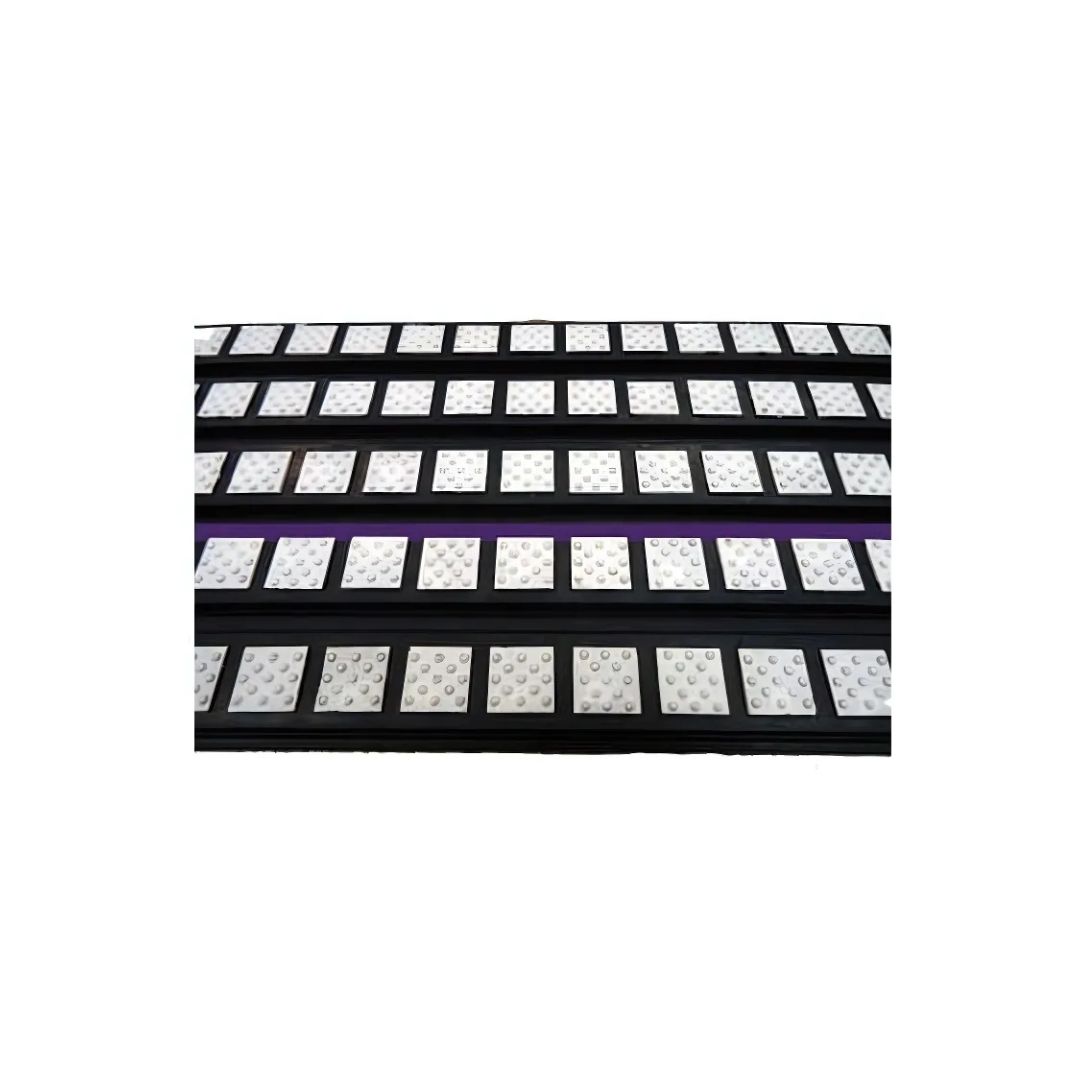

Description

FEATURES AND BENEFITS

• 39% tile coverage
• Ceramic tiles increase coefficient of friction between the belt and drive pulley in wet or variable conditions
• Constructed from individual ceramic tiles molded into a high-durometer rubber for excellent abrasion resistance
• Molded ceramic buttons grip the belt’s underside for positive traction
• Excellent friction for mid-range tension belts
• Available with FRAS approved rubber, marked in blue for easy identification on site
• Smooth ceramic available on demand. Also available in 40 m rolls

SPECIFICATIONS

• Minimum Pulley Diameter: 12″ (300 mm)
• Thickness: .5 – 1.15″ (12 – 30 mm)
• Temperature Rating: 5° F to 185° F (-15° C to 85° C)
• Rubber Compound: SBR (Styrene-Butadiene-Rubber)
• Rubber Hardness: 68 ± 3 Shore A
• FRAS (Fire Resistant Anti Static) – MHSA Certification # MSHA NO. IC-190
• Ceramic Compound: Aluminum Oxide (Al203)
• Ceramic Hardness:  83 HRA Rockwell Hardness Scale A
• Strip widths from 35″ (880 mm) to 101″ (2560 mm) to match up with pulley face widths
• Strip widths from 18″ (450 mm) to 84″ (2100 mm) to match up with belt widths

INSTALLATION

• Use the Flexco Lagging calculator to determine the appropriate number of strips/rolls required for your application
• Flex-Lag does not require removing the pulley from the conveyor system
• A labor-saving cold vulcanization process with Flex-Lag Adhesive makes on-site installation fast, simple, and efficient
