Description

FEATURES AND BENEFITS

• 15% tile coverage

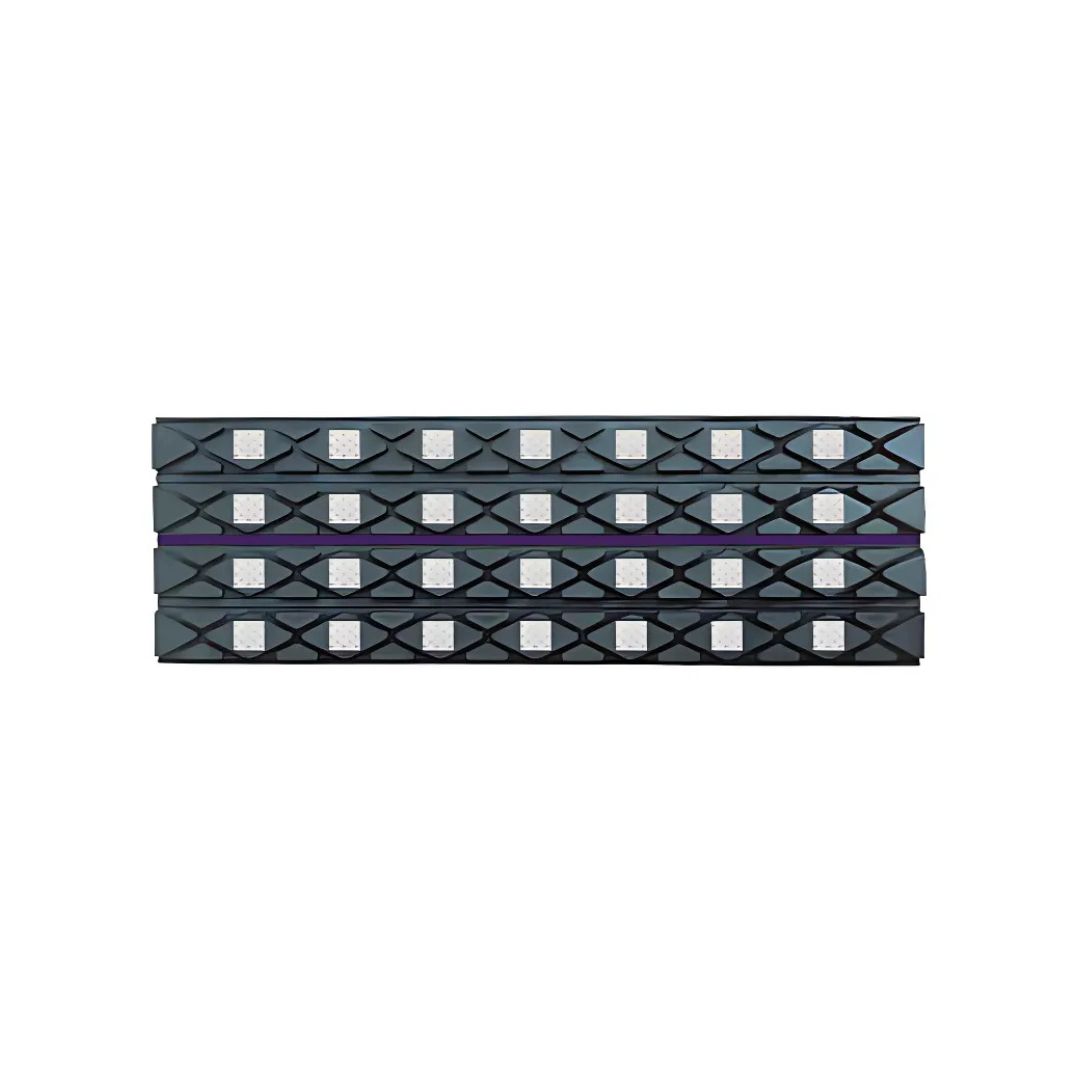

• Large ceramic tile is molded into the diamond section, providing an increased coefficient of friction vs. Diamond-Pattern Rubber
• Also features a bidirectional design for superior water-shedding characteristics
• Uses the advantages of a ceramic product at a more affordable cost in light or medium duty applications
• Available with FRAS approved rubber, marked in blue for easy identification on site

SPECIFICATIONS

• Minimum Pulley Diameter: 12″ (300 mm)
• Thickness: .5 – 1.15″ (12 – 30 mm)
• Temperature Rating: 5° F to 185° F (-15° C to 85° C)
• Rubber Compound: SBR (Styrene-Butadiene-Rubber)
• Rubber Hardness: 68 ± 3 Shore A
• FRAS (Fire Resistant Anti Static) – MHSA Certification # MSHA NO. IC-190
• Ceramic Compound: Aluminum Oxide (Al203)
• Ceramic Hardness: 83 HRA Rockwell Hardness Scale A
• Roll Width: 8″ (200 mm)
• Roll Length: 21 ft. (6.5 m)

INSTALLATION

• Use the Flexco Lagging calculator to determine the appropriate number of strips/rolls required for your application
• Flex-Lag does not require removing the pulley from the conveyor system
• A labor-saving cold vulcanization process with Flex-Lag Adhesive makes on-site installation fast, simple, and efficient
