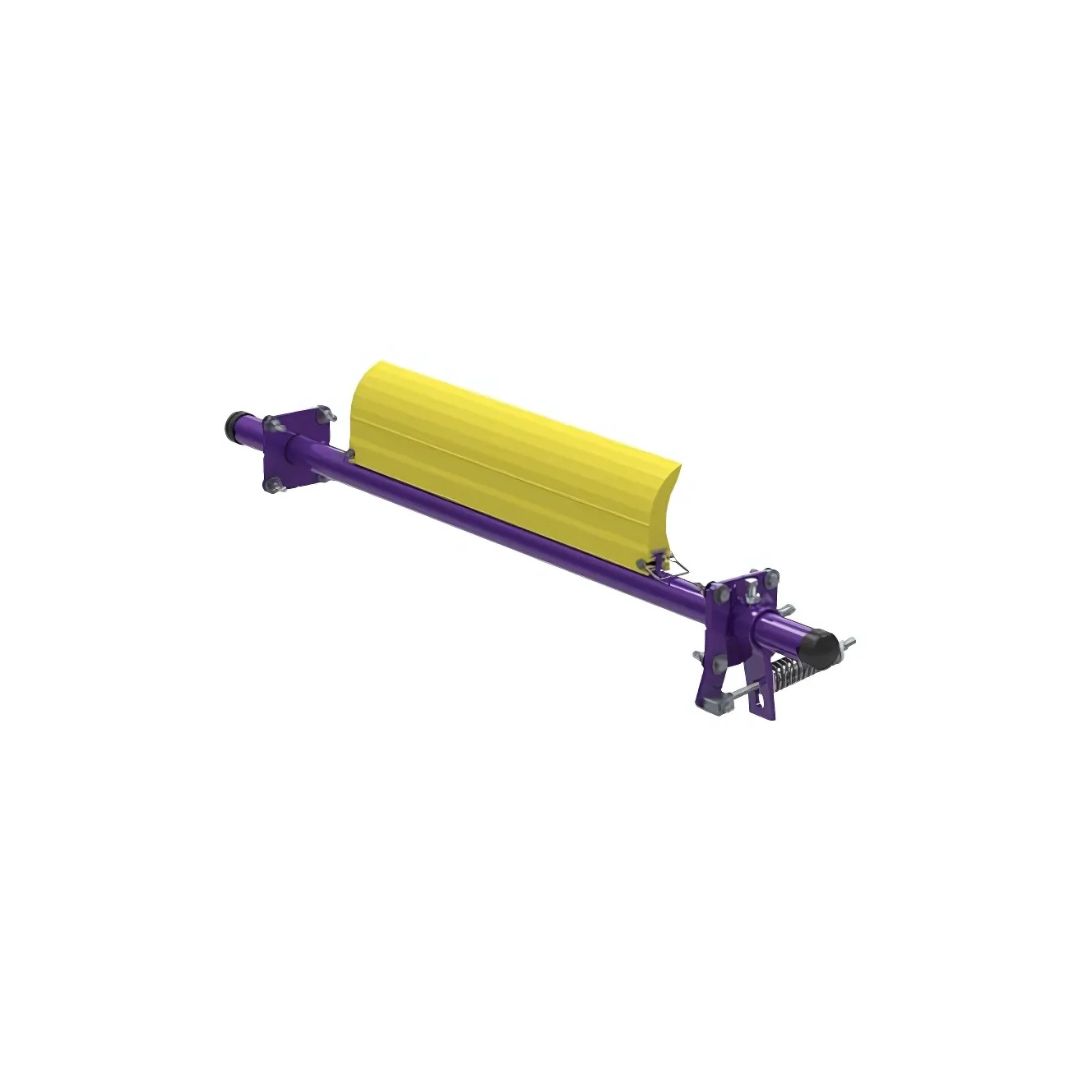

Description

SPECIFICATIONS

• Maximum Belt Speed: 700 fpm (3.5 m/sec)
• Temperature Rating: Up to 275°F (135°C) with spikes to 325°F (164°C)
• Minimum Pulley Diameter: 10″ (250 mm)
• ConShear blade sizes available:
  • Belt Width Minus 2″ (50 mm)
  • Cleaner can also be retrofitted with Belt Width Minus 8″ (200 mm) and Belt Width Minus 14″ (350 mm) replacement blades
• Blade Height: 7-1/4″ (185 mm)
• Usable Blade Wear Length: 4″ (100 mm)
• Blade Material: Polyurethane (proprietary blend for abrasion resistance and long wear)
• Pole Diameter: 2-3/8″ (60 mm)
• Belt Widths: 12″ to 72″ (300 to 1800 mm)

INSTALLATION

• Comes complete with universal mounting plates and tensioner
• Horizontal clearance required: 4″ (100 mm)
• Vertical clearance required: 9-1/2″ (238 mm)
