    EZP-LS High-Temp Limited Space

    EZP-LS High-Temp Limited Space

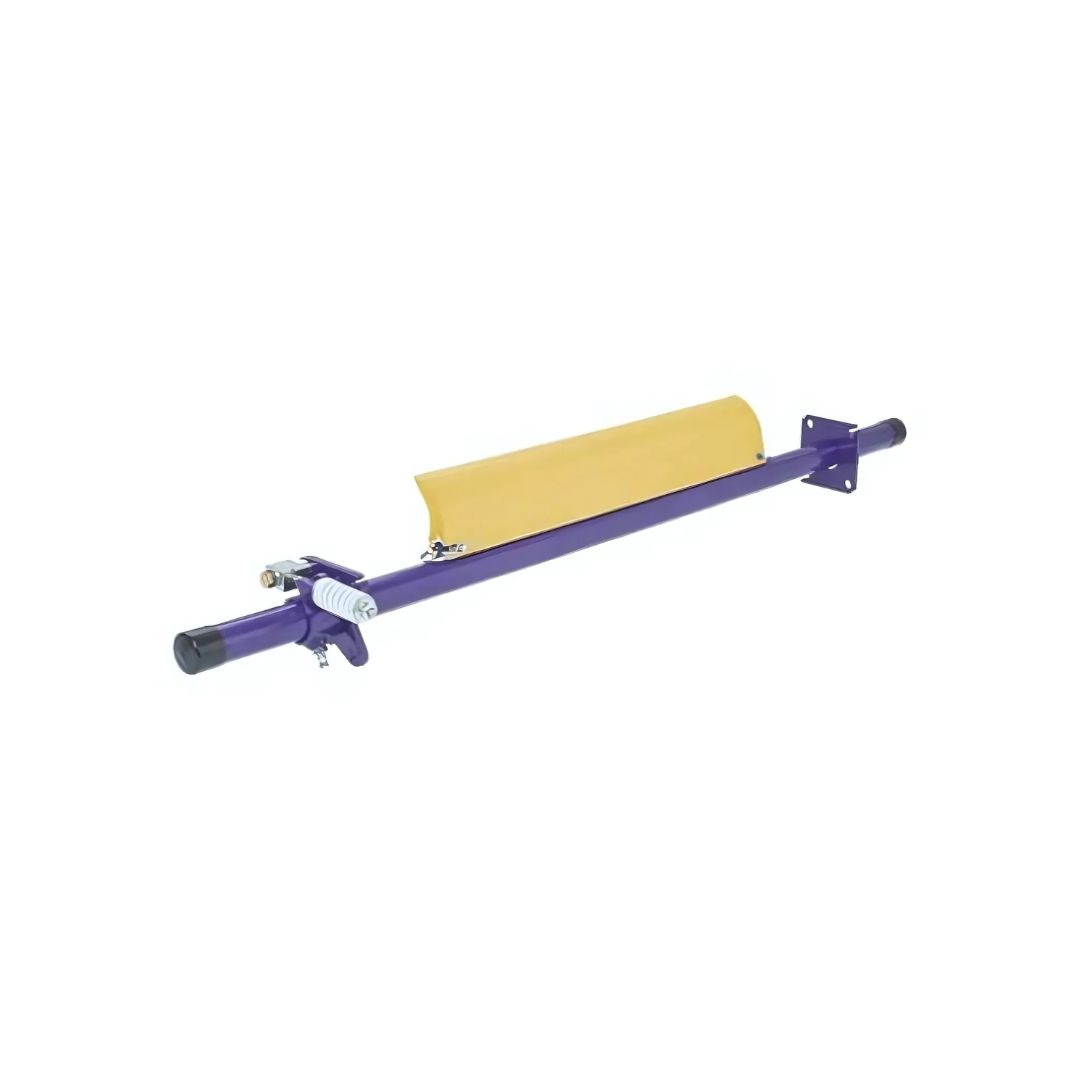

    The EZP-LS High-Temp is made from heavy-duty, powder-coated steel with a yellow High-Temp blade that works in temperatures up to 275°F (135°C) with spikes up to 325°F (164°C). Commonly used in applications such as coke, clinker, cement, and asphalt.

    Prices may differ. Contact our Customer Service for details!

    , , Brand:

    Description

    SPECIFICATIONS

    • Maximum Belt Speed: 500 fpm (2.5 m/sec)
    • Temperature Rating: Up to 275°F (135°C) with spikes to 325°F (164°C)
    • Minimum Pulley Diameter: 6″ (150 mm)
    • ConShear™ LS blade sizes available:
      • Belt Width Minus 2″ (50 mm)
      • Cleaner can also be retrofitted with Belt Width Minus 8″ (200 mm) and Belt Width Minus 14″ (350 mm) replacement blades
    • Blade Height: 4.5″ (115 mm)
    • Usable Blade Wear Length: 2-3/8″ (60 mm)
    • Blade Material: Polyurethane (proprietary blend for abrasion resistance and long wear)
    • Pole Diameter: 1-7/8″ (48 mm)
    • Belt Widths: 12″ to 60″ (300 to 1500 mm)

    INSTALLATION

    • Comes complete with universal mounting plates and tensioner
    • Pole length: Belt width plus 30″ (1350 mm)
    • Horizontal clearance required: 3″ (75 mm)
    • Vertical clearance required: 6-1/2″ (165 mm)
