Chevron Secondary Cleaner

Chevron Secondary Cleaner

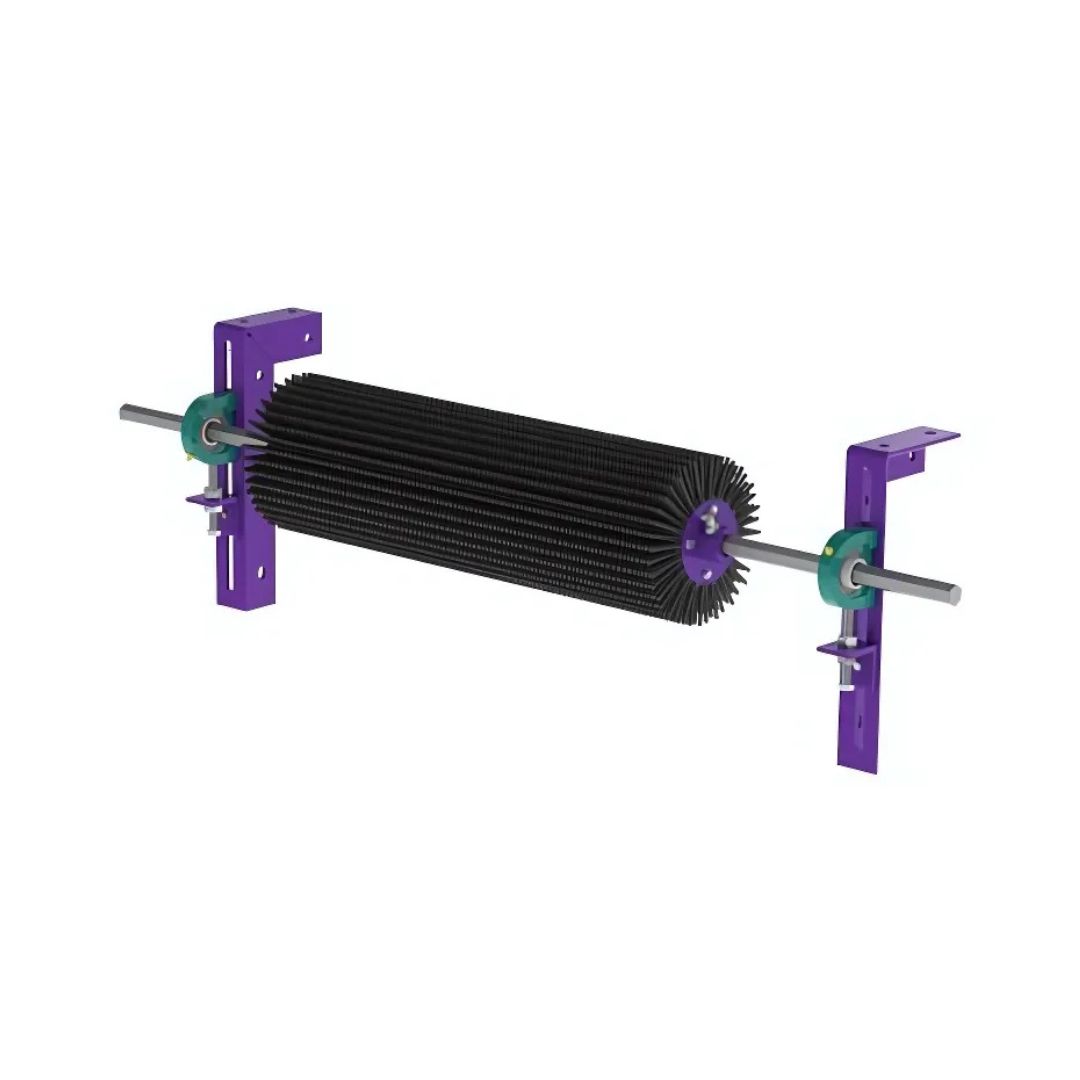

The Chevron Secondary Cleaner features hundreds of 2” (50 mm) rubber fingers that flick carryback off the belt with a unique rotary action. It’s easy to install and easy to maintain with the option to remove and replace 3″ (75mm)-wide rubber finger ring segments individually or as a complete drum.

Prices may differ. Contact our Customer Service for details!

Categories: Belt Cleaning Systems, Chevron Secondary Cleaner, Secondary Cleaner Brand: Flexco

Description
Reviews (0)

Description

SPECIFICATIONS

Maximum Belt Speed: 500 fpm (2.5M/sec)
Temperature Rating: -30°F to 180°F (-35°C to 82°C)
Maximum Chevron or Cleat Height: 1″ (25 mm)
Finger Length: 2″ (50 mm)
Rubber Durometer: 45A
Overall Diameter: 9-1/2″ (238 mm)
Shaft: 1″ (25mm) Hex
Available for Belt Widths: 18″ to 84″ (450 to 2100 mm)

INSTALLATION

Shaft Length: Belt width plus 30″ (750 mm)
Horizontal clearance required: 10″ (250 mm)
Vertical clearance required: 10″ (250 mm)
