Description

FEATURES & BENEFITS

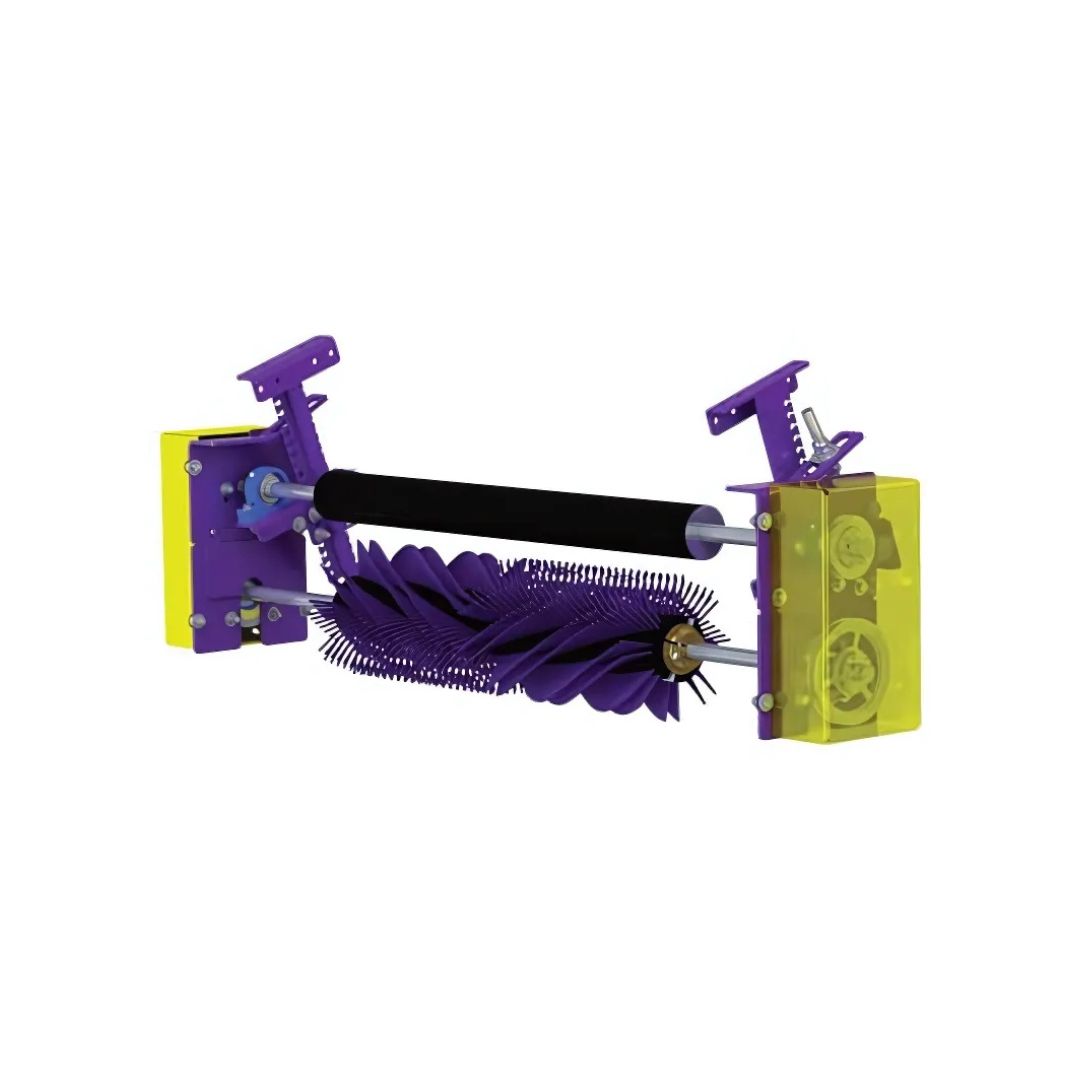

• Self-drive system. The assembly provides an all-in-one system that uses belt energy to drive the cleaner.
• Maximum Cleaning. Spins opposite the belt direction for optimal belt cleaning.
• Uniquely patterned bristles. Aids in reducing material buildup and clogging.
• Adjustable Tensioners. Allows easy brush-to-belt adjustment as the bristles wear.
• Works on mechanically spliced or vulcanized belts.

SPECIFICATIONS

• Maximum Belt Speed: Up to 700 fpm (3.5 m/sec)
• Temperature Rating: -20°F to 180°F (-30°C to 82°C)
• Maximum Chevron or Cleat Height: 1/2″ (13 mm)
• Bristle Length: 3-1/4″ (83 mm)
• Overall Diameter: 12″ (305 mm)
• Shaft Diameter: 1″ (25 mm)
• Available for Belt Widths: 24″ to 72″ (600 to 1800 mm)

INSTALLATION

• Shaft Length (Brush and Roller): Belt width plus 42″ (1067 mm)
• Horizontal clearance required: 28.38″ (720 mm)
• Vertical clearance required: 24.5″ (622 mm)
